This masterbatch foaming agent contains carrier, foaming agent, nucleating agent, dispersant, antioxidant and other ingredients. The raw materials are graded and screened, and the particle size distribution is concentrated. The foam cells are fine and the quality is comparable to that of imported ones. It is suitable for the extrusion and injection molding foaming process of easily hydrolyzed polymers such as PC, PET, PBT, etc.This masterbatch foaming agent contains carrier, foaming agent, nucleating agent, dispersant, antioxidant and other ingredients. The raw materials are graded and screened, and the particle size distribution is concentrated. The foam cells are fine and the quality is comparable to that of imported ones. It is suitable for the extrusion and injection molding foaming process of easily hydrolyzed polymers such as PC, PET, PBT, etc.
CE-525
BenQi
White granules
Sulfonylaminourea compound
| Quantity: | |
|---|---|
Foaming agent masterbatch CE-305L
Technical Parameters:
Grade: CE-525
Chemical Composition: Sulfonyl semicarbazide compound
Carrier Resin: EVA

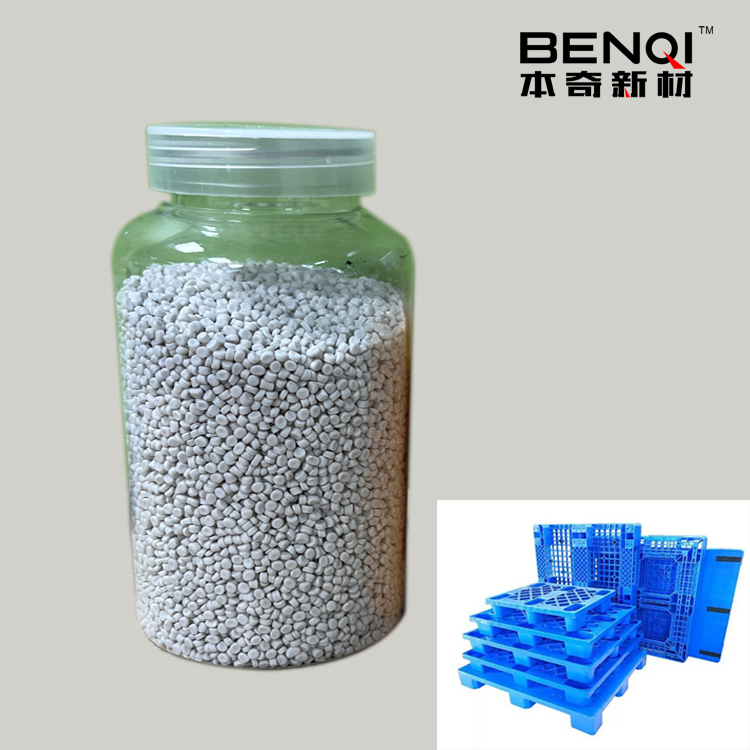

Appearance: White granules
Decomposition Temperature: 185-265 °C
Gas Yield (STP): 35-45 ml/g
Product Advantages:
● Decomposes without releasing moisture; high-temperature foaming
● Uniform, fine cell structure; smooth surface finish without streaks or blemishes
● Eliminates sink marks in plastic injection molding
● Shortens injection molding cycle time
Recommended Dosage:
0.5-2.0% (Injection Molding)
1.0-3.0% (Extrusion)
Packaging & Storage: Must be stored in a cool, dry place. 25KG/bag.
Applications of this Chemical Raw Material
This foaming agent (Grade: CE-525) is primarily applied to provide efficient, high-quality foaming solutions for hydrolysis-prone engineering plastics (PC, PET, PBT) during extrusion and injection molding processes. Its key advantages are moisture-free decomposition and high foaming temperature.
| | |
Here are its specific application scenarios and benefits:
Target Materials
PC (Polycarbonate): E.g., automotive lamp housings, dashboard components, electronic/electrical enclosures (requiring lightweighting, thermal/acoustic insulation), building materials (hollow sheets).
PET (Polyethylene Terephthalate): E.g., foamed sheets (food packaging trays, insulating mats), foamed preforms (lightweight beverage bottles), engineering parts (requiring rigidity and lightweighting).
PBT (Polybutylene Terephthalate): E.g., electrical connectors, automotive components (requiring heat resistance, flame retardancy, lightweighting), tool handles.
Application Processes
Producing various structural foam parts like enclosures, housings, brackets, containers, tools.
Especially effective for solving injection molding issues: Eliminating surface sink marks, shortening cooling time (thus reducing overall cycle time), improving product appearance (smooth surface).

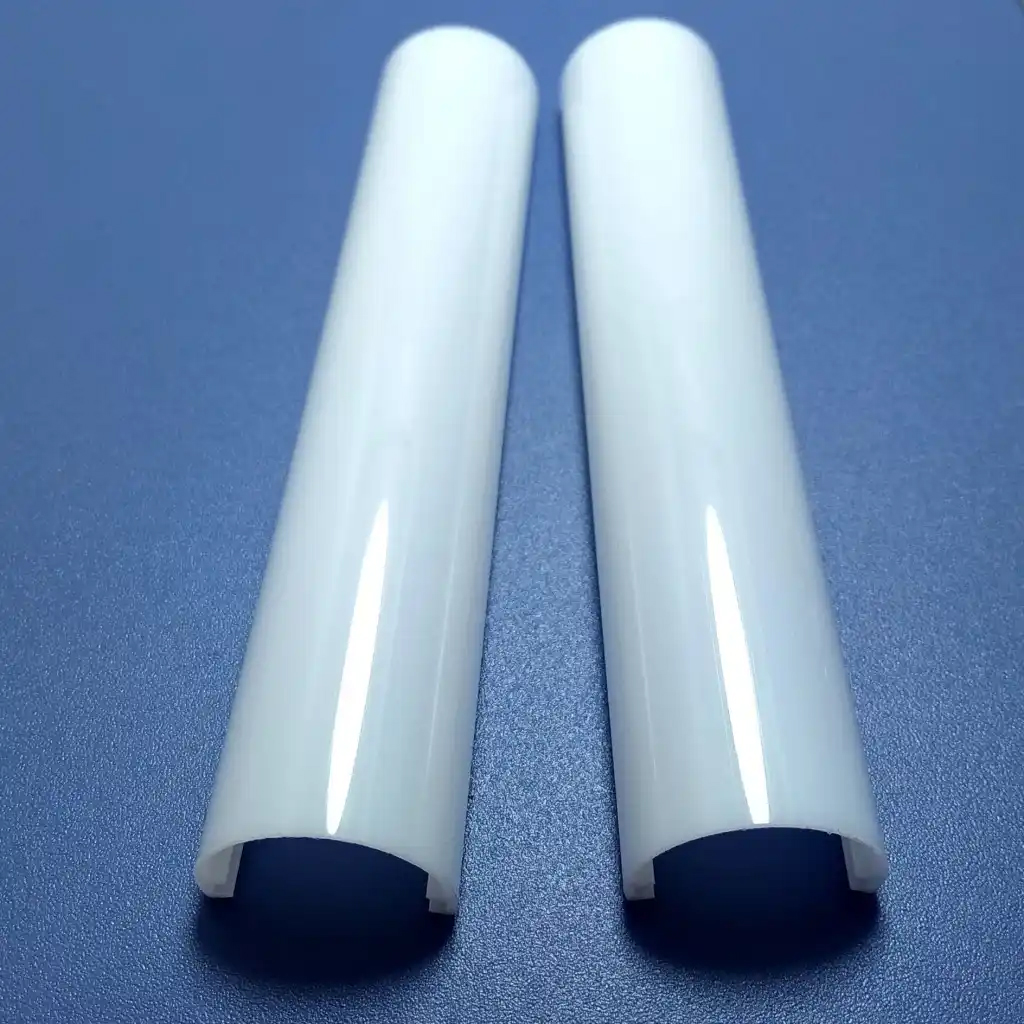

Producing foamed sheets, boards, profiles, tubes.
Manufacturing foamed films.
Creating microcellular foams in cable insulation layers to enhance performance.
Extrusion Molding
Injection Molding
Application Goals / Key Benefits:
Shorter Injection Molding Cycle: The insulating effect of the foamed core reduces cooling time, shortening the overall injection cycle and boosting output.
Eliminates Sink Marks: A critical application point in injection molding, particularly for parts demanding high surface quality (e.g., automotive interiors, electronics housings).
Smooth Surface Finish: Moisture-free decomposition and uniform cells prevent surface defects like streaks, silver marks, or blemishes caused by moisture vapor or coarse cells, resulting in a smooth, dense surface skin.
Lightweighting: Significantly reduces part density and weight by introducing a uniform, fine cellular structure, saving material costs.
Thermal/Acoustic Insulation: The gas-filled cell structure effectively blocks heat flow and sound waves, suitable for components requiring thermal/cold retention or noise reduction (e.g., packaging, building materials, automotive parts).
Material Cost Savings: Reduces resin consumption while maintaining or approaching original performance.
Improved Dimensional Stability: Foaming helps reduce internal stress, thereby minimizing shrinkage and warpage, especially beneficial for large parts or parts with significant wall thickness variations.
Enhanced Surface Appearance:
Increased Production Efficiency:
Cushioning & Impact Absorption: The cellular structure offers good energy absorption, suitable for packaging materials or parts requiring shock absorption.
Lower Dielectric Constant: Foamed plastics have a lower dielectric constant than solid plastics, advantageous in some electrical/electronic applications.
Target Industries:
Automotive: Interior parts (door panels, dashboard components), exterior parts, functional parts (insulation pads), lamp housings.

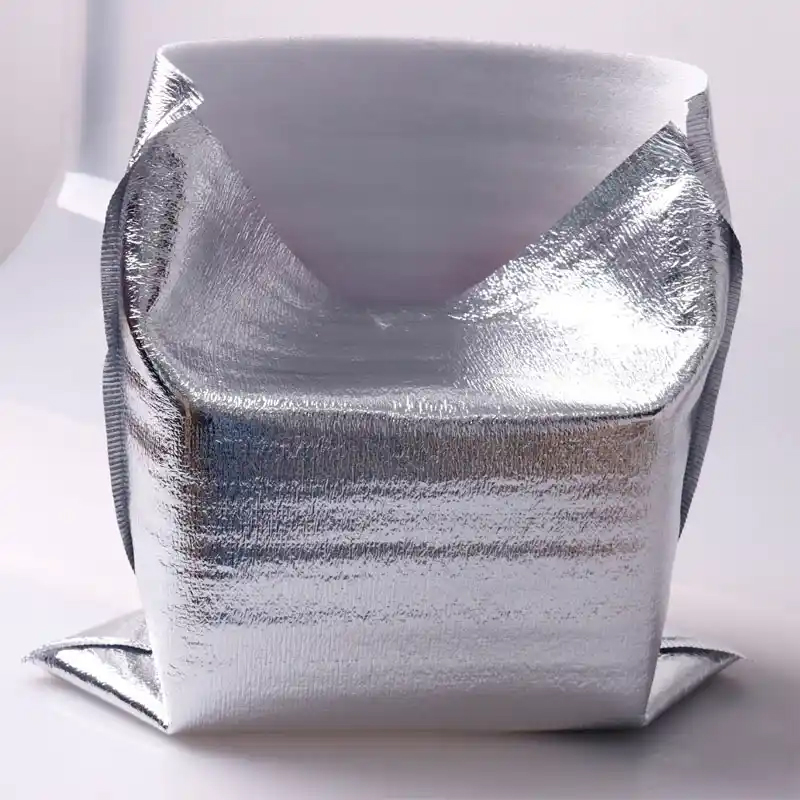

Packaging: Food trays, insulated take-out packaging, protective packaging, lightweight preforms/containers.
Electronics & Electrical Appliances: Equipment housings, connectors, bobbins, electronic component brackets.
Building & Construction: Insulating/ soundproofing panels, profiles, decorative moldings.

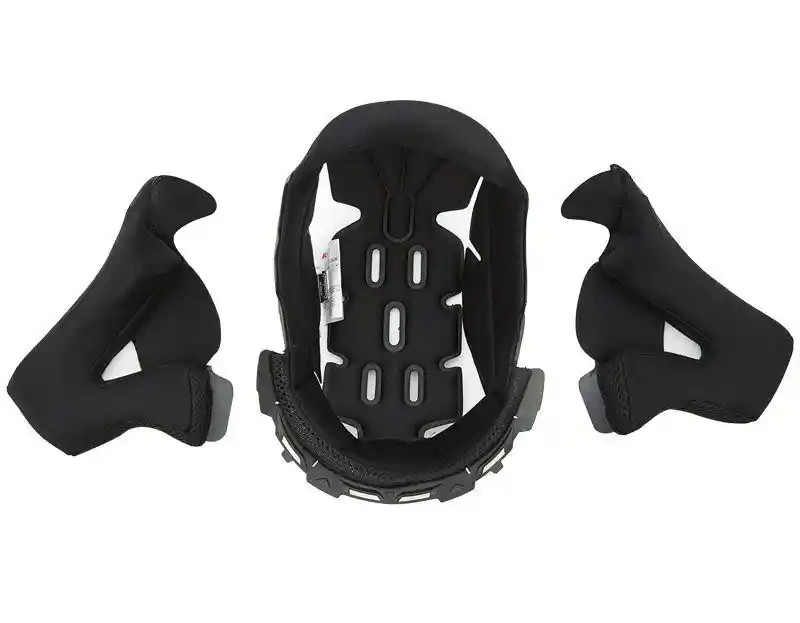

Sports & Leisure Equipment: Helmet liners, buoyancy materials, equipment parts.

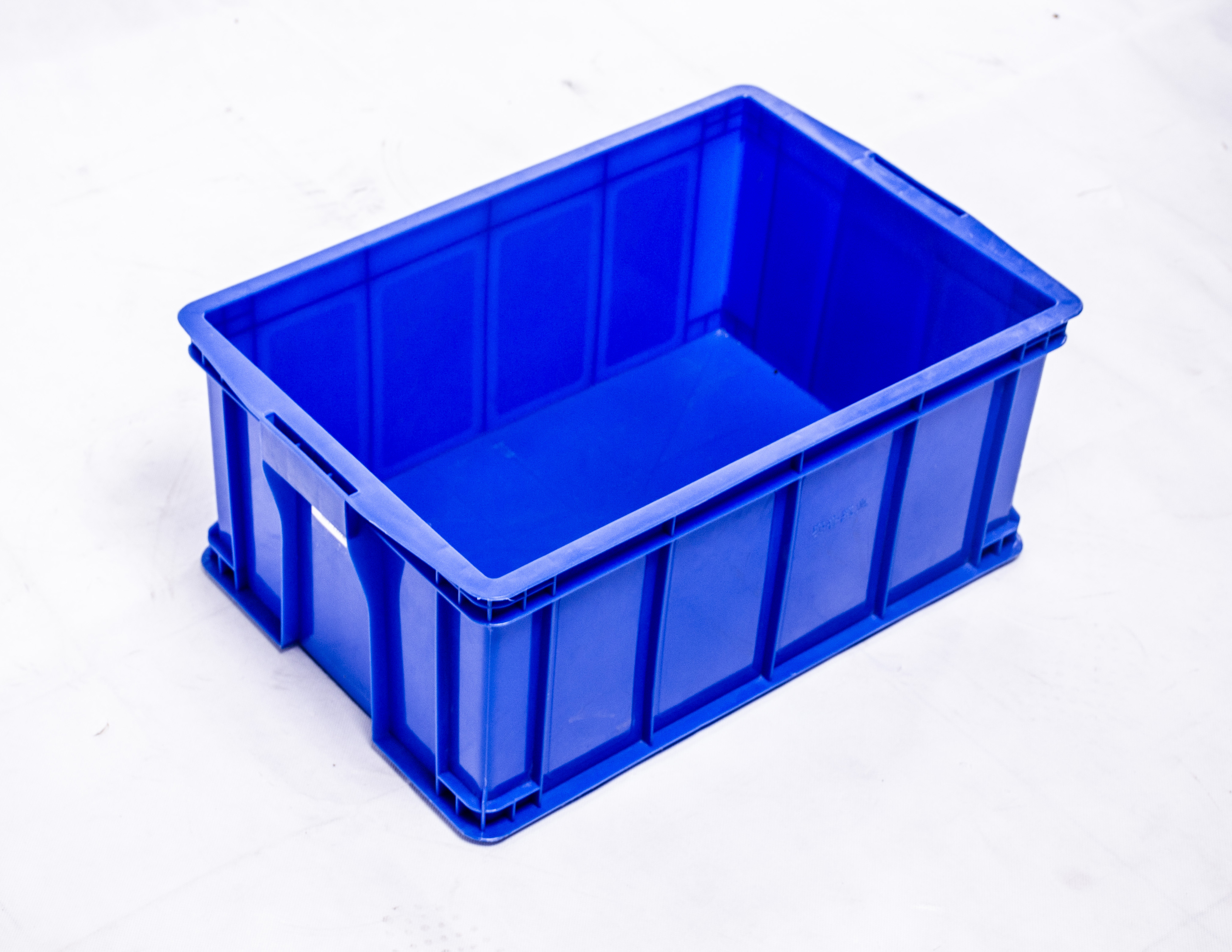

Industrial Goods: Tool handles, material handling crates/pallets.
Summary of Key Application Points
Core Value: Provides high-temperature, moisture-free, high-quality foaming capability for PC, PET, PBT.
Primary Processes: Extrusion and Injection Molding.
Standout Advantageous Applications:
Significantly eliminating surface sink marks, enhancing appearance grade.
Achieving a smooth, blemish-free surface.
Shortening the injection molding cycle, improving production efficiency.
Extrusion: Producing high-quality foamed sheets/boards/profiles with fine, uniform cells.
Injection Molding:
Achieving part goals: Lightweighting, thermal/acoustic insulation, cost savings, improved dimensional stability.
Therefore, this foaming agent is primarily used in the manufacturing of engineering plastic foam parts where high material performance (heat resistance, strength) and superior product appearance are critical.

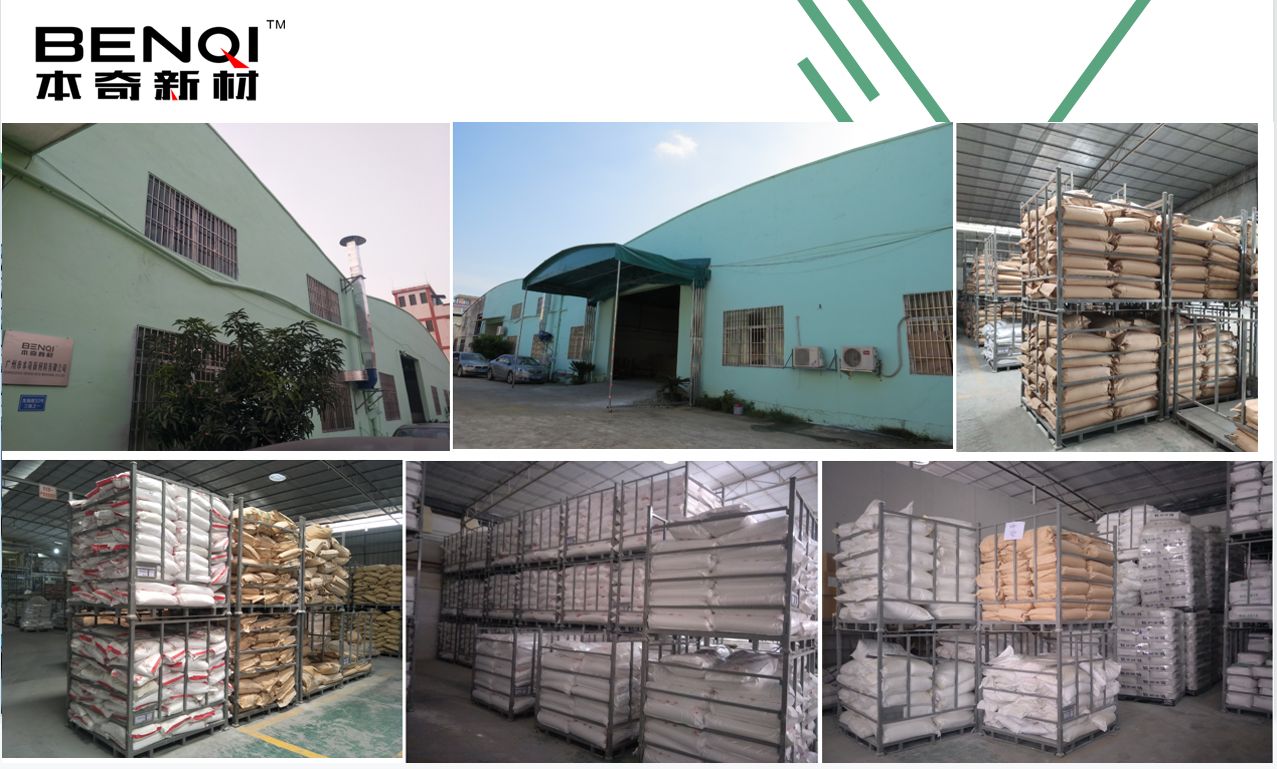

BENQI, founded in 2008, is a science and technology company that focus on the high-end modified foamingl agent & environmental friendly Ca-Zn stabilizer of plastic foaming industry, in the service of the universal plastics, engineering plastics, and rubber in high-end special foam industry, such as PVC,EVA,PE,TPE, TPR,PP,ABS,l PET etc.,which is famous known for the technical in this field.

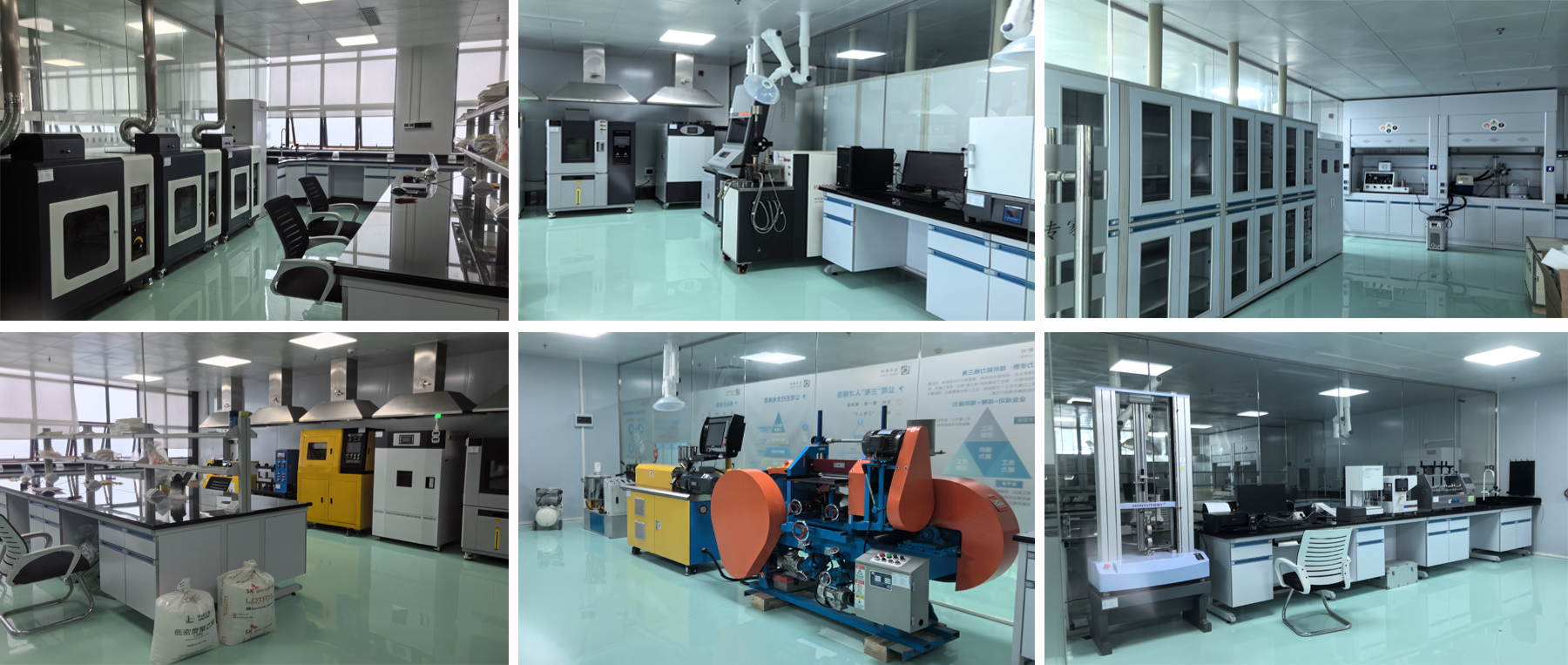

Company's core members are deep in the foam industry more than 17 years of industry experience. Our company has a strong R&D scientist team, contains 1 doctor's degree, master's degree in 1 person, a bachelor's degree in 3, and establishes a strategicl cooperative relationship with Sun Yat-Sen University, South China University of technology. Our company is committed to provide customers with high performance special modification of foaming agent, also provide solutions for special foam industry.
Contact Us to request free samples, detailed technical data sheets, or professional application consultation. Let's work together to elevate foaming to new heights!
